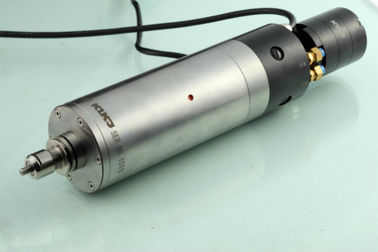

KLB-80-3 40000 RPM PCB High Frequency Spindle Motors Ball Bearing Spindle Milling And Cutting Motor Spindle

40000 RPM PCB High Frequency Spindles , Low Static Ball Bearing Spindle



PRODUCT DESCRIPTION

MODEL: KLB-80-3
REPLACE FOR: PRECISE TL60
SPEED: 5000- 40,000 rpm
Bearing type: Ball bearing
MAX Speed range: 5,000 - 40,000 rpm
Power: 3.3kW
MAX Voltage: 40-380V
TORQUE: 800g
Vibration: 1.0MM/S
Static Runout: <=2.0µm
BODY SIZE: Ø 80
Tool & tool change form: Φ10


Competitive Advantage:

LOW STATIC
LOW DYNAMIC RUN OUT
HIGH TOUQUE
STABLE CHARACTER AND LONG LIFE
SUITABLE FOR PRECISION DRILLING


Application

MACHINING FOR NON-FERROUS MATERIAL; CNC ENGRAVING


Quick Detail:



SPECIFICATION:



For any other parameter pl. feel free to contact us.

SPECIFICATION:

                                 KLB-80-3SPINDLE OUTLINE DRAWING

Why choose KLKJ?

With nearly 15 years technology in spindle maintenance, 10 years success experience for spindles parts production, and 9 years spindle R&D, KLKJ succeed in offer air bearing spindle up to 200krpm.

All spindles at the KLKJ are fully checked and tested using stringent quality control procedures. KLKJ ensures every repaired spindle passes the following points to make it in long life and stable character :

1.     Air flow

2.     Water flow

3.     End float/lift off

4.     Axial load (inner)

5.     Axial load (outer)

6.     Torque

        7.  Static RUNOUT

        8.  Dynamic RUNOUT

        9.  Motor check

       10. Vibration

      11. Material analysis & strictly quality test detection control

      12. Stringent tolerance control

Spindle Quality From Customer
